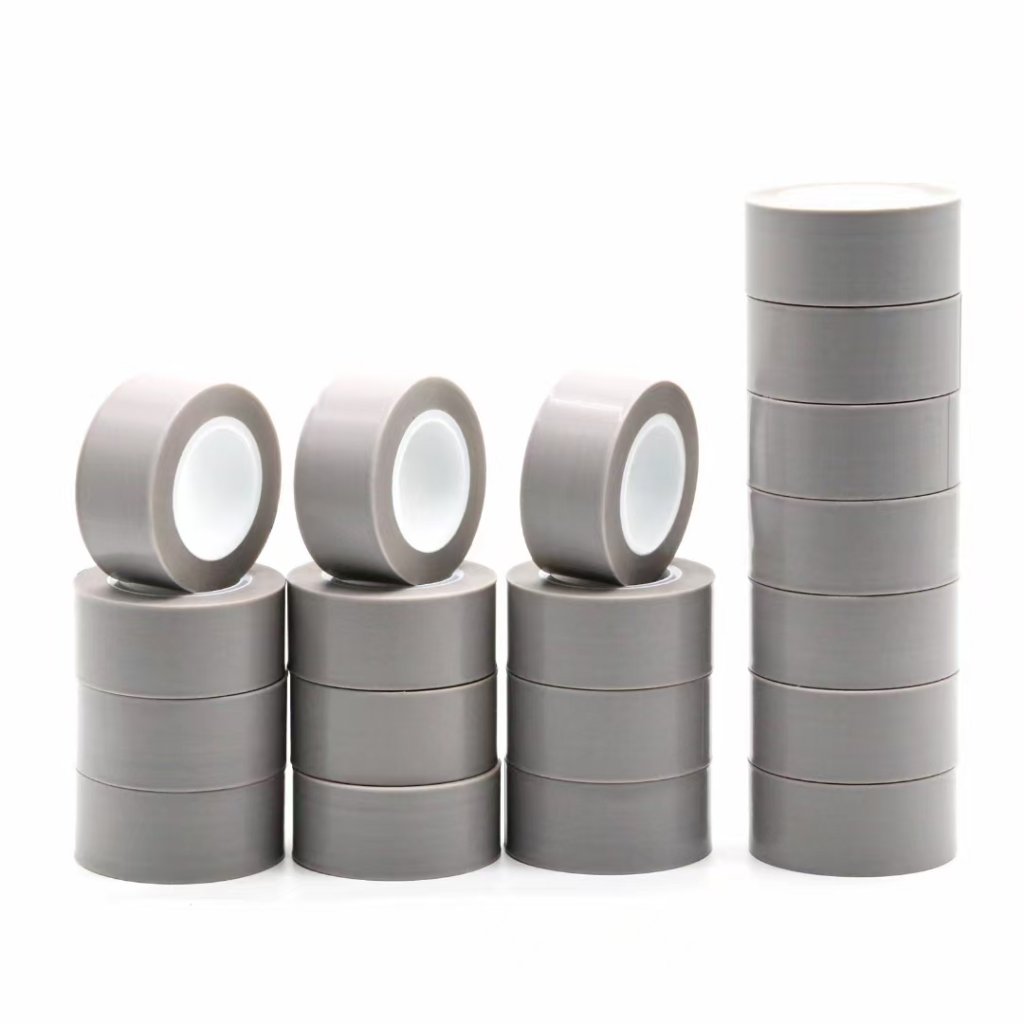

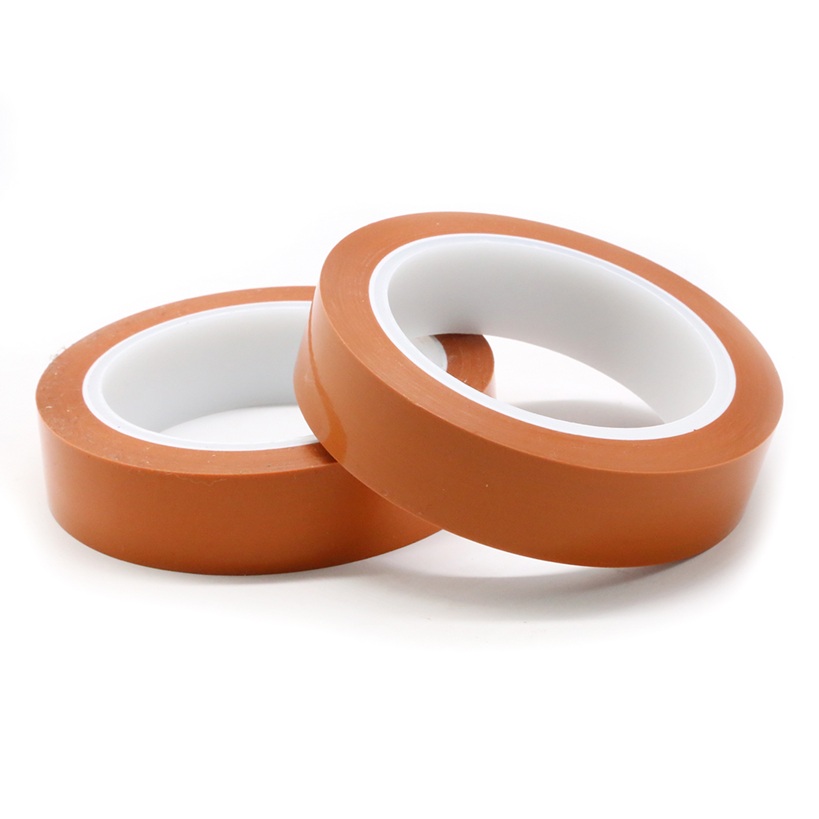

PTFE film adhesive tape combines the inherent properties of PTFE – high temperature resistance, low friction, non‑stick, and chemical inertness – with a pressure‑sensitive adhesive (silicone or acrylic). This makes it an indispensable material across many industries.
- Heat Sealing & Packaging
· Sealing bars & jaws: Used as a cover layer on heat‑sealing equipment (e.g., continuous band sealers, impulse sealers) to prevent molten plastic films (PE, PP, PET) from sticking to the hot metal surfaces.
· Heat‑shrink tunnels: Protects guide rails and conveyor parts from adhesive build‑up.
· Release liner: Prevents glue or resin from adhering to machinery during production.
- Electronics & Electrical Industry
· Insulation & protection: Provides dielectric insulation for coils, transformers, capacitors, and wire harnesses due to its high dielectric strength and thermal stability (up to 260 °C continuously).
· PCB manufacturing: Used as a masking tape during soldering or wave soldering to protect sensitive components, as it withstands high temperatures without leaving residue.
· Flat cable binding: Offers a smooth, low‑friction surface for flex circuits and ribbon cables.
| Code | Adhesive type | Film thickness mm | Total Thickness mm | Tensile Strength N/5cm | Dielectric Strength KV |
| FL005 | Silicone | 0.03 | 0.05 | 50 | 4 |
| FL008 | Silicone&Acrylic | 0.05 | 0.08 | 250 | 6.5 |
| FL013 | Silicone&Acrylic | 0.08 | 0.13 | 300 | 13 |
| FL018 | Silicone&Acrylic | 0.13 | 0.18 | 300 | 13 |
